Helios 26W 600×600 UGR ≤19 DALI / Push Dimmable LED Panel

The Seven ACE Helios DALI Dimmable LED Panel – 26W 600×600 UGR ≤19 is a trade-quality low-glare LED panel designed for commercial spaces where lighting control, visual comfort and reliability all matter. Supplied complete with a Merrytek / KREAT DALI-2 dimmable driver, this panel is ideal for offices, schools, healthcare settings, meeting rooms and other professional environments that require dependable dimming performance.

Combining UGR ≤19 low glare performance, switchable 4000K / 5000K / 6000K colour temperature and a high-quality DALI-2 + push dimmable driver, this is a practical solution for installers and specifiers who want a clean, efficient panel with flexible control built in.

Why Choose This DALI Panel

• Merrytek / KREAT DALI-2 Driver Included: Supplied complete with a quality DALI-2 dimmable driver, also supporting push dimming for flexible lighting control.
• Low-Glare UGR ≤19: Designed to improve visual comfort in offices, classrooms, healthcare spaces and other screen-based working environments.
• Switchable CCT: Select 4000K, 5000K or 6000K to suit the application using a single panel SKU.
• High Efficiency Output: Delivers approx. 3,640 lumens with strong efficacy and low running costs.
• Flicker-Controlled Performance: The Merrytek / KREAT driver is designed for stable dimming performance with flicker under 2% across the dimming range.
• Professional Finish: Slim 600×600 mm panel with RAL 9016 white frame, ideal for suspended ceiling grids.
• Trade-Ready Reliability: Built for commercial installation with a 5-year warranty and long service life.

Designed for Commercial Lighting Control

This is not just a standard panel with a basic dimming add-on. The Helios DALI version is built for projects where lighting control is part of the specification, whether that is for energy saving, user comfort, zoning, scene setting or integration into a wider lighting control system.

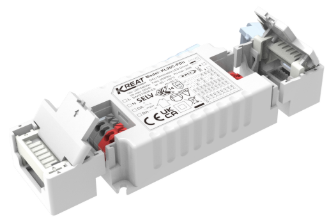

The supplied Merrytek / KREAT KL26CC-PDii driver supports both DALI-2 dimming and push dimming, giving added flexibility on site. That makes this panel suitable both for full DALI control systems and for simpler local dimming setups where push dim functionality is preferred.

Technical Specifications

Feature	Details
Panel Wattage	26 W
Panel Size	600×600 mm
Light Output	Approx. 3,640 lm
Glare Rating	UGR ≤ 19
Colour Temperature	4000K / 5000K / 6000K switchable
Dimming	DALI-2 dimmable + push dimming
Driver Brand	Merrytek / KREAT
Driver Model	KL26CC-PDii
Driver Type	Constant current LED driver
Driver Input Voltage	198–264VAC, 50/60Hz
Driver Rated Input Voltage	220–240VAC, 50/60Hz
Driver Output Voltage Range	12–43VDC max
Driver Output Power	26W max
Power Factor	≥0.95
Standby Power	≤0.5W
IP Rating	IP20
Frame Colour	RAL 9016 White
Safety Rating	TP(a) Diffuser – suitable for commercial use
Warranty	5 Years

Ideal For

• Offices and administration areas
• Schools, colleges and classrooms
• Healthcare and professional interiors
• Meeting rooms and reception spaces
• Commercial refurbishments and fit-outs
• Projects requiring DALI or push dim control

Buy with Confidence from Seven LED

At Seven LED, we supply trade-focused lighting built for real commercial installations. The Helios DALI Dimmable Panel gives you the reassurance of a quality Merrytek / KREAT driver, low-glare panel performance and flexible control options in one straightforward product.

• Quality dimming driver included — no guesswork on compatibility
• DALI-2 and push dim support for greater installation flexibility
• Low-glare commercial lighting suited to professional environments
• Switchable CCT for easier stock holding and project flexibility
• 5-year warranty and reliable UK support

Order today and choose a dependable dimmable panel solution with the Seven ACE Helios 26W 600×600 UGR ≤19 DALI Dimmable LED Panel.
