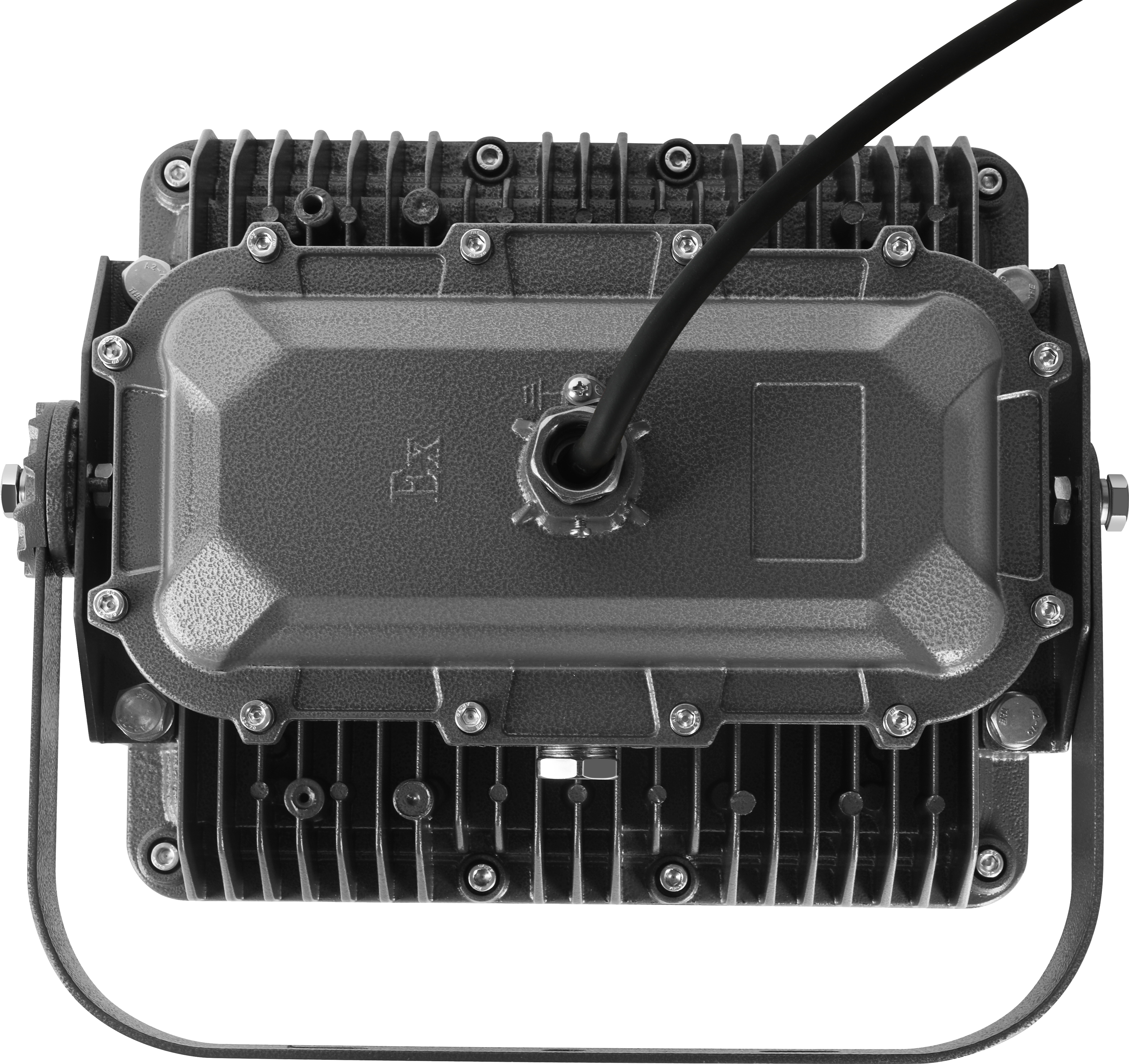

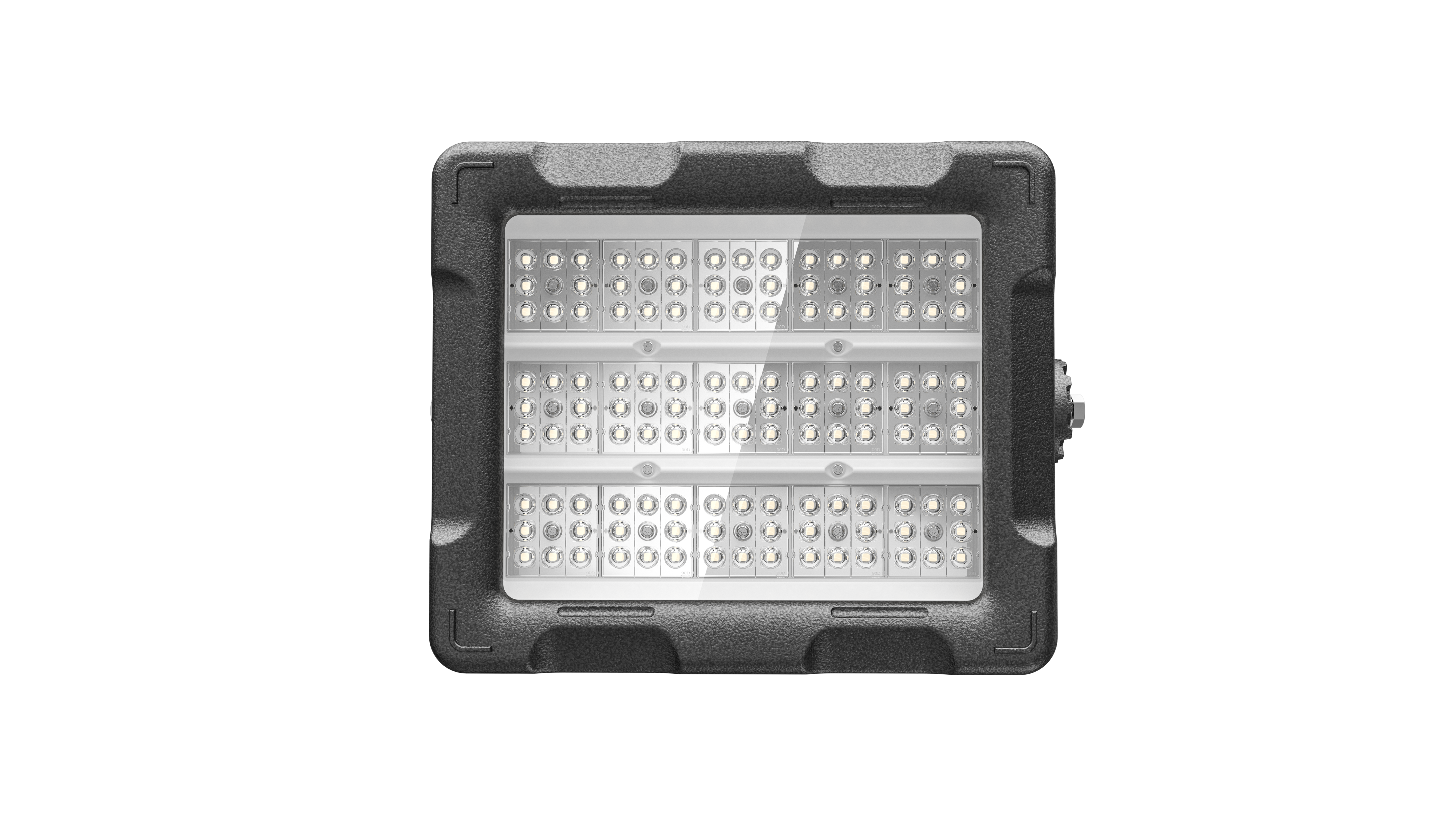

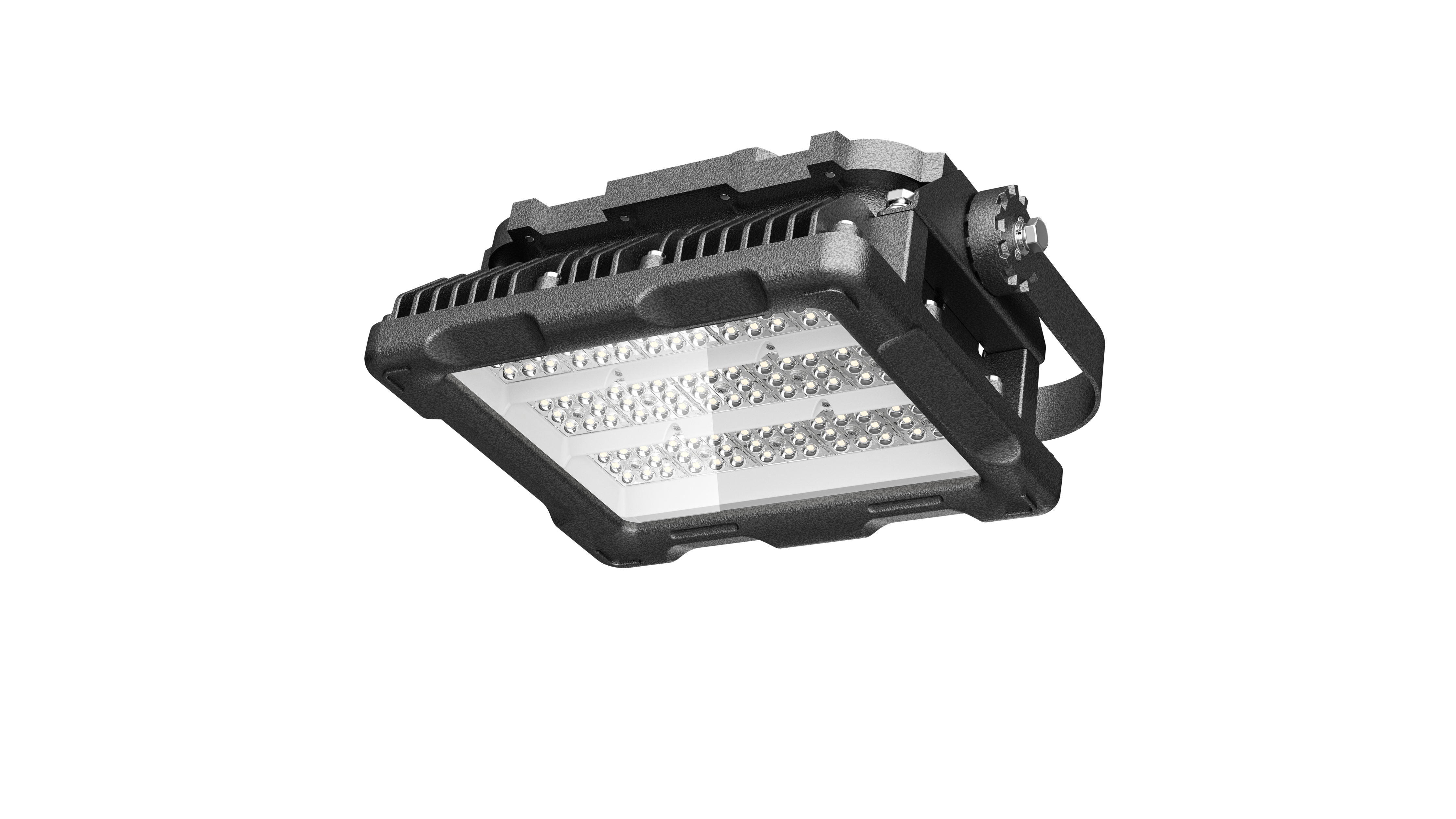

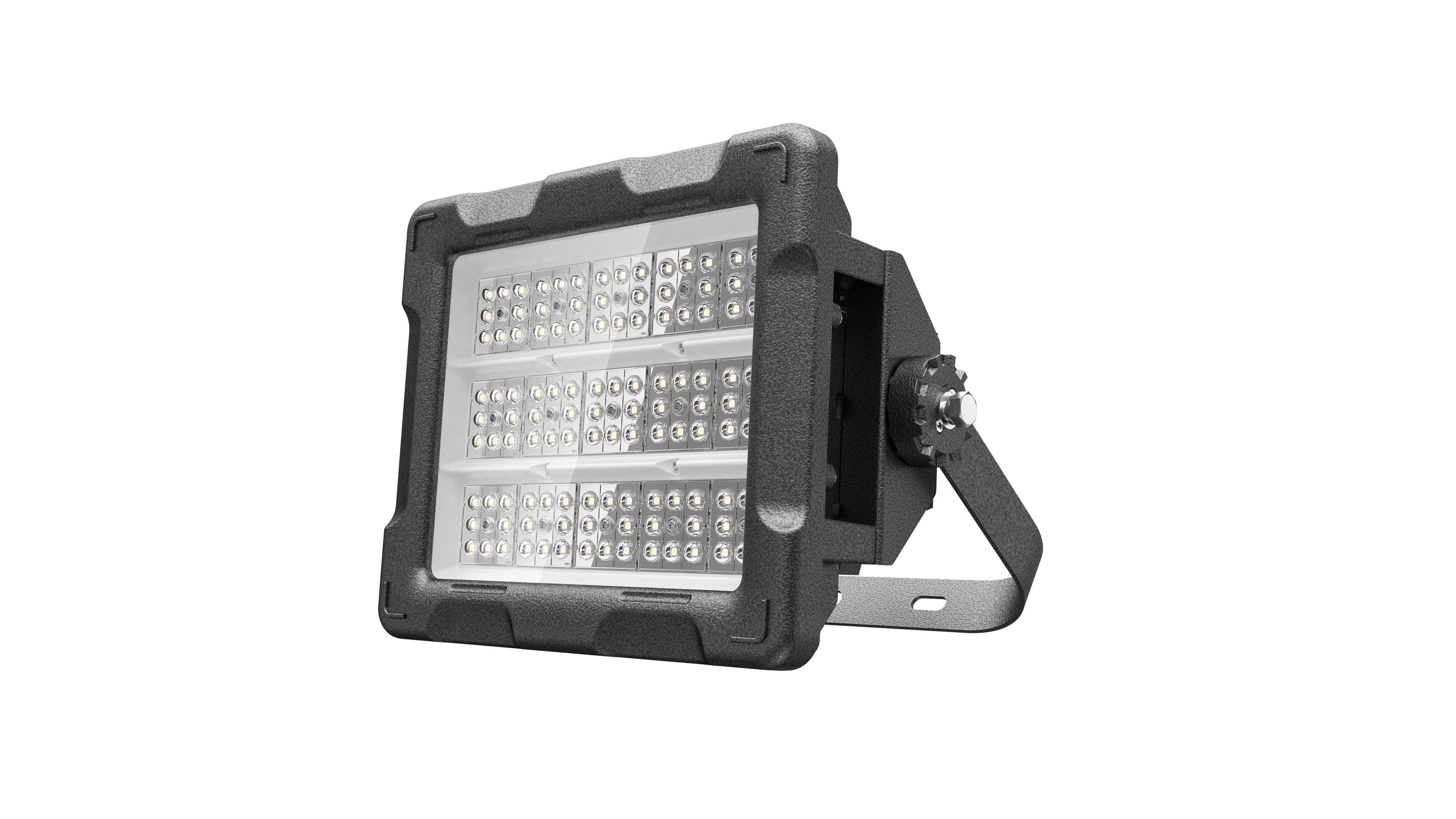

200 W ATEX Explosion-Proof Floodlight – 28 000 lm | IP66 / IK08 | Zone 1/21 Certified

The 200 W ATEX Explosion-Proof Floodlight (EX200AE1H-CM) delivers high-intensity, certified lighting for Zone 1, Zone 2, Zone 21 and Zone 22 hazardous areas. Using Cree 3030 LEDs and a Mean Well driver, it produces up to 28 000 lumens at 150 lm/W with reliable performance in oil, gas, chemical and heavy-industrial environments.

🔑 Why Choose This ATEX Floodlight

• ATEX Certified Safety: Approved for Zone 1/2 (gas) and Zone 21/22 (dust) applications — compliant with II 2G Ex de mb IIC T4 Gb / II 2D Ex tb IIIC T(95 °C) Db.
• Exceptional Output & Efficiency: Around 28 000 lm from 200 W (~150 lm/W) for superior coverage and energy savings.
• Precision Optics: Choose from multiple beam angles (25°, 55°, 90°, 120°, 100×150°, 120×150°) to suit your layout or mounting height.
• Mean Well Driver & Cree LEDs: High-grade components for stable output, >93 % efficiency and flicker-free operation.
• Durable Construction: Pure aluminium body with AkzoNobel anti-corrosion coating, IP66 waterproof & IK08 impact rated.
• Extended Protection: Built-in 6 kV/10 kV surge suppression plus OTP, OCP, OVP & SCP driver safety.
• Reliable Service Life: L90B10 > 50 000 h with a 5-year manufacturer warranty.

📊 Technical Specifications

Feature	Details
Model	EX200AE1H-CM
Power	200 W
Luminous Flux	≈ 28 000 lm
Efficacy	150 lm/W
LED Brand	Cree 3030
Driver	Mean Well (> 93 % efficiency)
CRI	> 70
Beam Angles	25° / 55° / 90° / 120° / 100×150° / 120×150°
Voltage	100–277 V AC, 50/60 Hz
IP Rating	IP66 (dust & water resistant)
Impact Rating	IK08
Surge Protection	6 kV / 10 kV
Housing	Aluminium (A6063) with AkzoNobel coating
Thermal Conductivity	226 W/m·K
Operating Temperature	−40 °C to +60 °C
Lifespan	50 000 h (L90B10)
Certifications	II 2G Ex de mb IIC T4 Gb / II 2D Ex tb IIIC T(95 °C) Db
Warranty	5 Years (manufacturer)

📍 Recommended Applications

• Oil & gas refineries and chemical processing plants
• Drilling rigs, offshore platforms & marine facilities
• Tank farms, pump rooms and battery storage areas
• Paint booths and flammable-vapor workshops
• Industrial yards and loading bays (Zone 1/21 hazardous zones)

💡 Installer Benefits

• Precision adjustable mount for accurate beam aiming
• Optional control interfaces: DALI, DMX, ZigBee & 1–10 V dimming
• −40 °C to +60 °C ambient range for extreme environments
• Compliant with EN 60079-7 and ATEX requirements

✅ Supplied by Seven LED

This ATEX-certified floodlight is supplied by Seven LED for specialist and industrial projects. It is not a stock item and is typically available on a 1–2 week lead time.

• Trade pricing and project quotes available on request
• UK technical support for hazardous-area applications
• Nationwide delivery via approved distribution partners

Request a quotation today to schedule supply of the 200 W ATEX Explosion-Proof Floodlight — the proven, certified choice for hazardous-area illumination.
