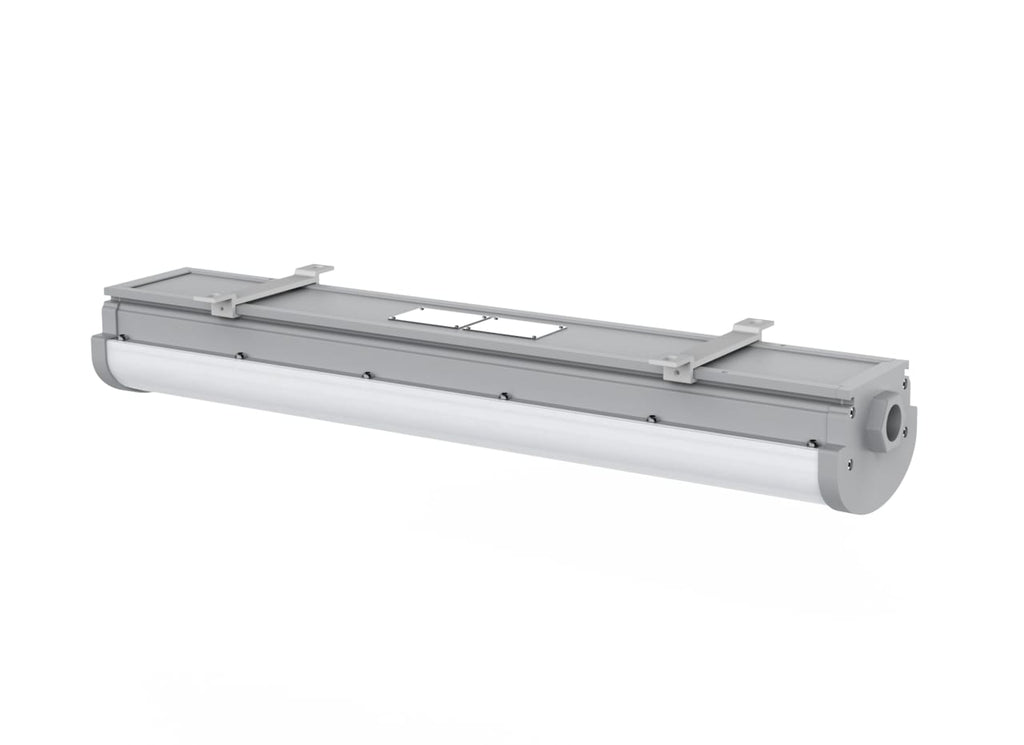

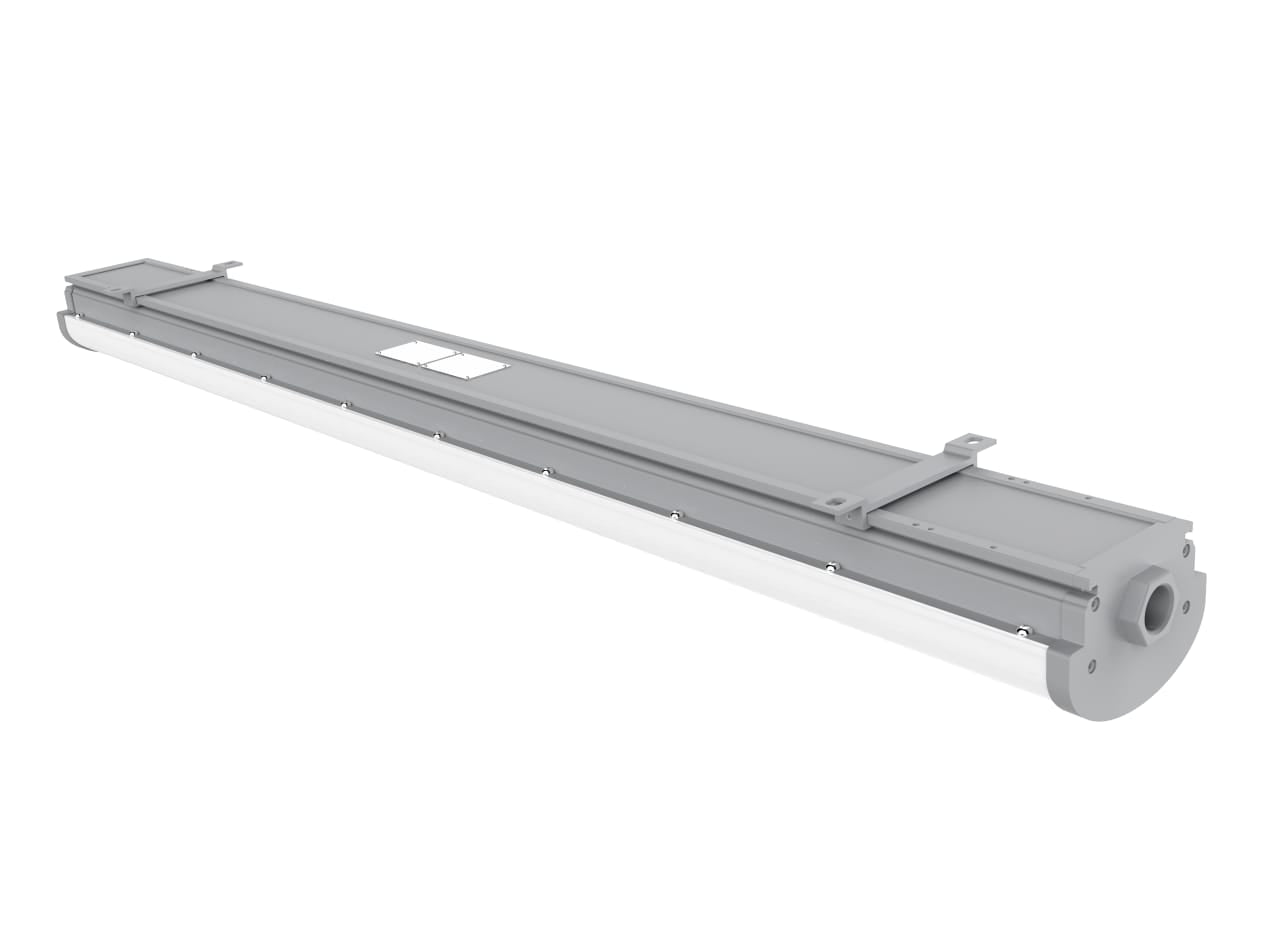

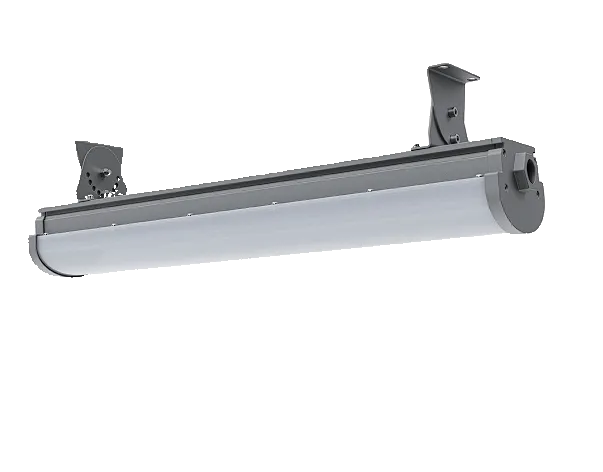

The 4ft ATEX LED Linear Light / Batten is a robust hazardous area luminaire designed for sites where flammable gases, vapours or combustible dust may be present. Built on the CES-EX-LN-02P platform, it is certified for Zone 1, Zone 21, Zone 2 and Zone 22 applications and is designed as a modern LED replacement for traditional explosion-proof fluorescent fittings.
For a cleaner and more practical buying setup, this 4ft / 1.2m version is available in 60W, 80W and 100W options with single or double gland entry. It delivers up to 140 lm/W, is rated IP66, and is suited to demanding industrial and process environments.
• Zone 1, Zone 21, Zone 2 and Zone 22 hazardous areas
• Replacing older explosion-proof fluorescent fittings
• Chemical plants, refineries, offshore sites and wastewater facilities
• Industrial walkways, process areas, plant rooms and technical enclosures
| Product type | ATEX LED linear light / hazardous area batten |
| Length | 4ft / 1.2m |
| Wattage options | 60W / 80W / 100W |
| Input voltage | 100–277V AC, 50/60Hz |
| Light efficiency | 140 lm/W |
| Beam angle | 120° |
| Colour temperature | 5000K standard |
| CRI | Ra ≥70 |
| Power factor | >0.95 |
| Ingress protection | IP66 |
| Operating temperature | -40°C to +50°C |
| Lifetime | >50,000 hours |
| Surge protection | 4kV / 6kV |
| Body / cover | Aluminium alloy housing with corrosion-resistant PC cover |
| Cable | 0.5m three-core rubber cable as standard |
| Gland entry options | Single gland entry or double gland entry |
| ATEX marking | II 2 G Ex eb mb IIC T5 Gb |
| ATEX dust marking | II 2 D Ex tb IIIC T75°C Db |
| IECEx marking | Ex eb mb IIC T5 Gb / Ex tb IIIC T75°C Db |
| ATEX certificate | SEV 21 ATEX 0578 X |
| IECEx certificate | IECEx SEV 21.0038X |
• Wastewater treatment works
• Oil and gas facilities
• Refineries and petrochemical plants
• Offshore platforms and drilling rigs
• Chemical, food and pharmaceutical plants
• Containerised plant and technical enclosures
This listing is set up around the most common configurations for UK projects: 60W, 80W and 100W with single or double gland entry. Standard supply is based around a UK-friendly metric gland arrangement. Alternative entry sizes, mounting methods and project-specific configurations can be supplied on request. Typical lead time is 2–3 weeks from confirmed order and payment.
