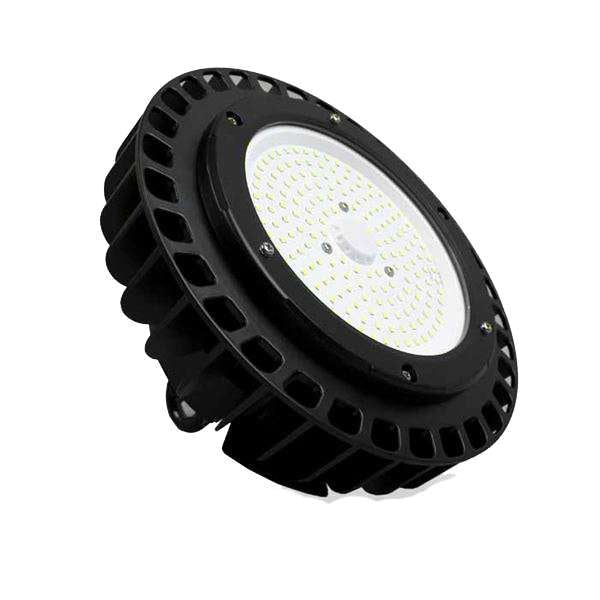

Lumilife Essential 200 W LED High Bay – 34 000 lm | 170 lm/W | Dimmable 1–10 V

The Lumilife Essential 200 W LED High Bay (HB-200D-ESS-5700K) provides powerful, high-efficiency lighting for demanding industrial and commercial environments. Using Samsung 2835 LEDs and a rugged die-cast aluminium housing, it delivers around 34 000 lumens at 170 lm/W — ideal for warehouses, production halls and retail spaces requiring bright, reliable illumination.

🔑 Why Choose This High Bay

• High Output Performance: Produces ≈ 34 000 lm from 200 W (170 lm/W) for maximum light coverage and efficiency.
• Samsung LED Technology: 294 SMD 2835 LEDs provide consistent brightness and long-term reliability.
• Dimmable (1–10 V): Allows precise control of light levels via standard dimming gear for energy management.
• Industrial-Grade Build: Die-cast aluminium body with integrated heat sink for excellent thermal management.
• Versatile Installation: Supplied with hanging ring for suspended mounting — surface mount compatible.
• Accessory Options: Aluminium or PC reflectors (60° / 90° / 70°) and Merrytek sensor add-ons available for custom control.
• Reliable Operation: Rated for −30 °C to +40 °C with a service life of 50 000 h (L90B10).

📊 Technical Specifications

Feature	Details
Model	HB-200D-ESS-5700K
Power	200 W
Luminous Flux	≈ 34 000 lm
Efficacy	170 lm/W
LED Brand	Samsung 2835 SMD
Driver	LF-FHB200 YA (1–10 V Dimmable)
Beam Angle	120° (default)
Voltage	AC 100–277 V, 50/60 Hz
Colour Temperature Options	4000 K / 5000 K / 5700 K / 6500 K
Material	Die-cast aluminium body with integrated heat sink
Operating Temperature	−30 °C to +40 °C
Lifespan	50 000 hours (L90B10)
Dimensions	Ø 295 × H 205.5 mm
Weight	≈ 6.3 kg (net)
Warranty	3 Years (manufacturer)

📍 Recommended Applications

• Warehouses and distribution centres
• Manufacturing and assembly facilities
• Retail and wholesale units with high ceilings
• Sports halls and recreation spaces
• Workshops and maintenance areas

💡 Installer Benefits

• Hook mount included for quick and secure installation
• Dimmable 1–10 V driver with potentiometer for on-site adjustment
• Optional reflector and sensor accessories to suit different projects
• Durable construction for long-term industrial use

✅ Supplied by Seven LED

The Lumilife Essential 200 W LED High Bay is supplied by Seven LED for trade and commercial projects throughout the UK. Typically available on a 1–3 day lead time.

• Trade supply and project quotations available on request
• UK technical support for specification and installation
• Nationwide delivery with rapid turnaround

Request a quote or enquire today about the Lumilife Essential 200 W LED High Bay — a high-output, efficient solution for industrial and commercial lighting projects.
