Applies to: Helios UGR<19 LED Panels (26 W) with DALI-2 drivers. Need DALI for Horizon Frame (36 W)? Our team can supply a compatible higher-power driver — just ask when requesting your quote.
Why DALI + UGR matters for projects
DALI (Digital Addressable Lighting Interface) enables individual addressing, grouping and smooth 0–100% dimming. Pairing DALI with Helios UGR<19 low-glare panels delivers visual comfort and building-wide control — ideal for offices, schools and public buildings.
Driver match: KL26CC-PDii DALI-2 constant-current driver (300–600 mA selectable, 12–42 V, up to 26 W) — a perfect fit for our 26 W Helios panels.
Horizon Frame panels are 36 W and require a higher-power DALI-2 driver — contact us for options.
The terminals you’ll use
- L / N — 220–240 V mains input.
- DA / DA — DALI control bus (polarity-free) from the DALI master/controller.
- SEC +/− — constant-current output to the LED panel (set driver current via DIP: 300/350/500/600 mA).
Wiring steps
- Isolate power.
- Set the driver current via DIP (e.g., 500 mA) to match the Helios panel.
- Connect L and N mains to the driver input.
- Connect the DALI bus from your DALI master to DA / DA (polarity-free).
- Wire SEC +/− to the Helios UGR panel.
- Repeat for additional panels; each driver sits in parallel on the same DALI loop (see diagram).
- Re-energise and commission via the DALI master (address, group, test 0–100% dimming; verify tunable-white if used).

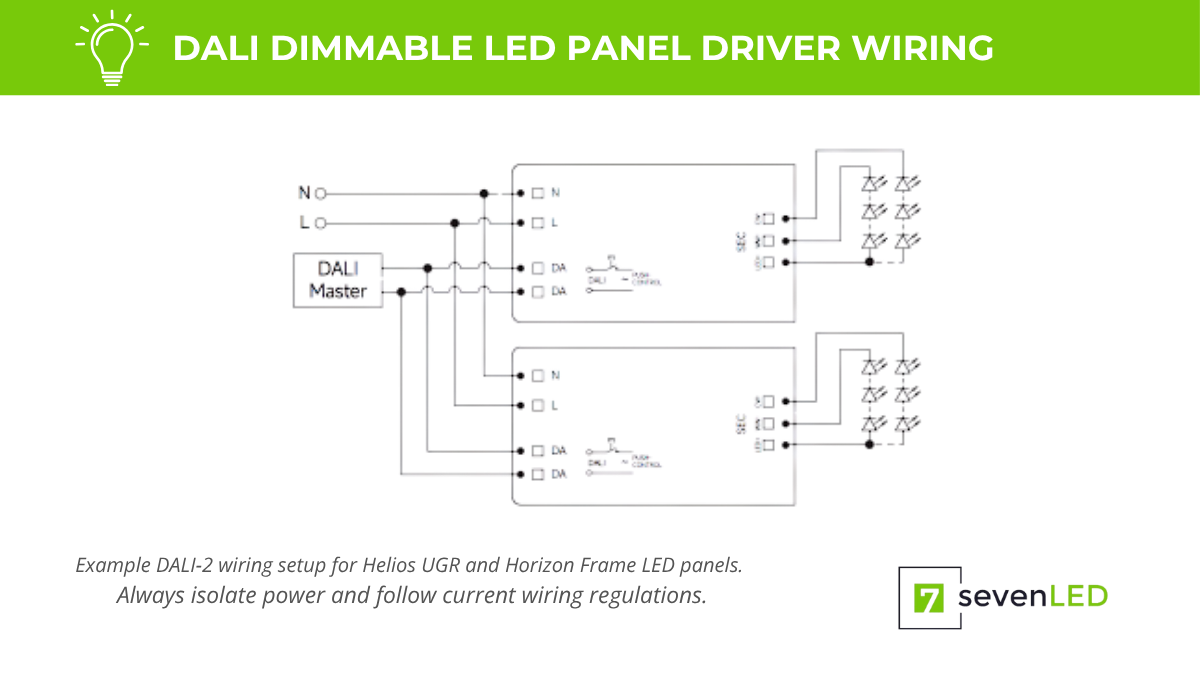

Example DALI-2 wiring setup for Helios UGR LED panels. Always isolate power and follow current wiring regulations.
Installer tips
- Keep mains and control wiring segregated; follow local regulations.
- The driver supports push-dim as a fallback where no DALI system exists.
- Ensure the LED load is connected before applying power.
⚠️ Installation and wiring should only be carried out by a qualified electrician or competent person in accordance with local wiring regulations.
Where we specify Helios UGR + DALI
Offices, classrooms, healthcare and council buildings — anywhere UGR<19 and centralised controls are required. For surface-mount or design-led ceilings, see our Horizon Frame Panels and ask for DALI driver options.
FAQ
Is this driver suitable for Helios UGR panels?
Yes. The KL26CC-PDii DALI-2 driver (up to 26 W) is a perfect match for our 26 W Helios UGR panels.
Can I use this driver with Horizon Frame panels?
Horizon Frame panels are typically 36 W and require a higher-power DALI-2 driver. Contact us for the correct specification.
Does polarity matter on the DALI pair?
No. The DA/DA terminals are polarity-free — connect either way.
What current should I set on the driver?
Match the panel rating (e.g., 500 mA for Helios). DIP options: 300 mA, 350 mA, 500 mA, 600 mA.
All electrical work must be performed by a qualified professional. Seven LED accepts no responsibility for improper installation or use outside stated specifications.
